YZF10-20 Fan AC Motor 120V 10 / 55W 0.8A 60Hz Shaded Pole Condenser Motor Replace for Atosa Avantco Refrigeration Equipment Radiator Evaporator Freezer, Small Ventilation Equipment 1550rpm

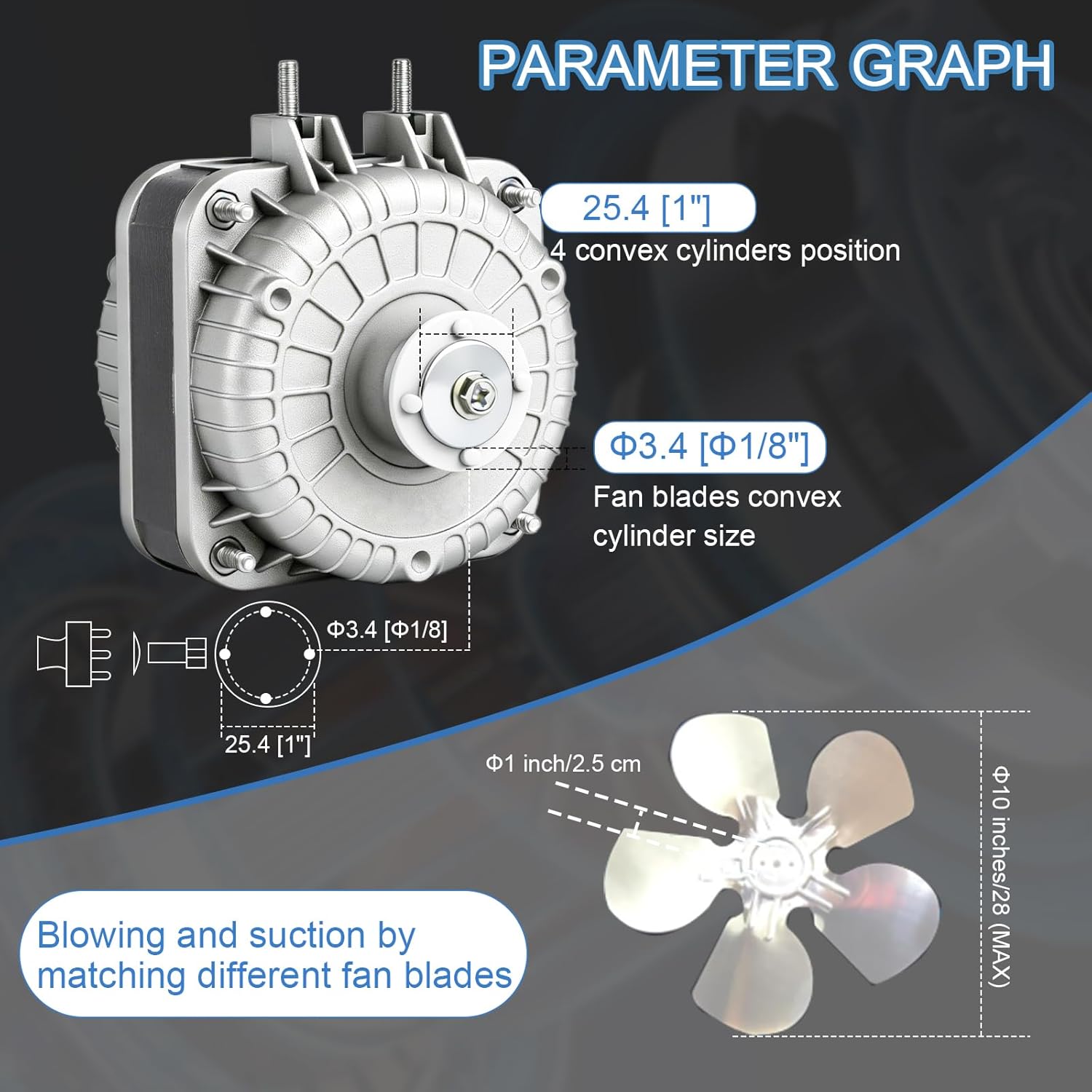

JINQHTEK YZF10-20 Fan AC Motor is a single phase 4-pole shaded pole motor.It is mainly used for small ventilation, condenser or evaporator air circulation in refrigeration equipment,such as condenser fans for freezer and refrigerators. The motor technical features are as follows: (1) Rated voltage: AC 120 Volts (2) Operating frequency: 60Hz (3) Input power: 55Watts (4) Output power:10 Watts (5) Rated current:1.01 Ampere (6) Output shaft speed: 1550rpm/min (7) Motor thermal protection:257℉±41℉ , built-in (8) Motor winding temperature rise: ≤95K (9) Insulation class: B class (10) Protection class: IP42 (11) Insulation voltage(HI-POT TEST): 1800V/1s (12) Rotation(Looking towards the shaft):CCW (13) Airflow direction: Suction or blown by different fan blades, the maximum size of the fan blades is Φ254,28° (14) Mounting type:Horizontal or Vertical (15) Applicable ambient temperature for the motor: -13°F to 122°F (16) Operating type:S1 (17) Bearings: Sleeve bearings (18) Electrical connection: UL 18AWG 2C lead wire 19.68-21.65 inches free length (19) Weight per unit:1.1Kg (20) Packing: 1PCS/CTN (21) The average service life of motors is over 20000 hours. (22) Before operating the motor, make sure to effectively connect the external grounding device to the outer casing of the motor. The external ground wire may be connected to the bolts of the motor, or the motor casing may be connected to the external grounding device through the conductive metal.

• 【Excellent Performence】YZF10-20 fan motor is made by professional fan motor manufacturer, Each YZF10-20 fan motor undergoes rigorous quality and performance tests before leaving the factory, meeting&exceeding OEM standards. Operating efficiently within a wide temperature range from -22°F to 122°F, the YZF10-20 condenser fan motor features an internal thermal protector with a thermal cutoff temperature of approximately 275°F, providing secure overheat protection. It stands as the ideal choice for refrigeration&air circulation systems.
• 【Premium Materials】 Constructed with high-density A356 aluminum alloy with a density of 2.7g/cm³&premium copper wires, the YZF10-20 fan motor boasts characteristics of lightweight, high thermal conductivity&corrosion resistance. The lightweight material reduces the motor's load, enhancing its efficiency&performance. Its high thermal conductivity allows for the effective dispersion and release of heat generated during operation, contributing to maintaining stable performance and extending the motor's lifespan. With excellent corrosion resistance, the motor can operate in various environmental conditions without significant impact.
• 【Parameters of the Condenser Fan Motor】The specifications of the YZF10-20 are as follows: VOLTAGE: 115V; CURRENT: 0.8A; INOUT POWER: 10W; INPUT POWER: 55W; FREQUENCY: 60Hz; SPEED: 1550 RPM; FAN BLADES Φ230/28°(MAX); ROTATION: CCW (looking towards the shaft); INSULATION: CLASS Class B; PROTECTION CLASS: IP42; OPERATING TYPE: S1; MOUNTING TYPE: Horizontal or Vertical; BEARINGS: Sleeve bearings; ELECTRICAL CONNECTION: RV 2G 0.5mm² lead wire 500-550mm free length; HI-POT TEST 1800V/1s I leakage< = 0.8 mA
• 【Wide range of application】 YZF10-20 fan motor can dissipate heat, suitable for small ventilation equipment, various refrigeration equipment, such as condensers, freezers, radiator evaporators, etc.YZF10-20 fan motor can replace YZF10-20 (120V, 60HZ, Input power 55W, output power 10W) YZF6-13 (120V, 60HZ, Input power 33W, output power 6W) W0301905 (120V, output power 10W) W0301904 (115V, output power 9W)
• 【Good after-sales Service】 If you have any questions, please contact us in time, we will try our best to give you a satisfactory answer and you can unconditionally request a free replacement. We always provide 1 year free replacement.
